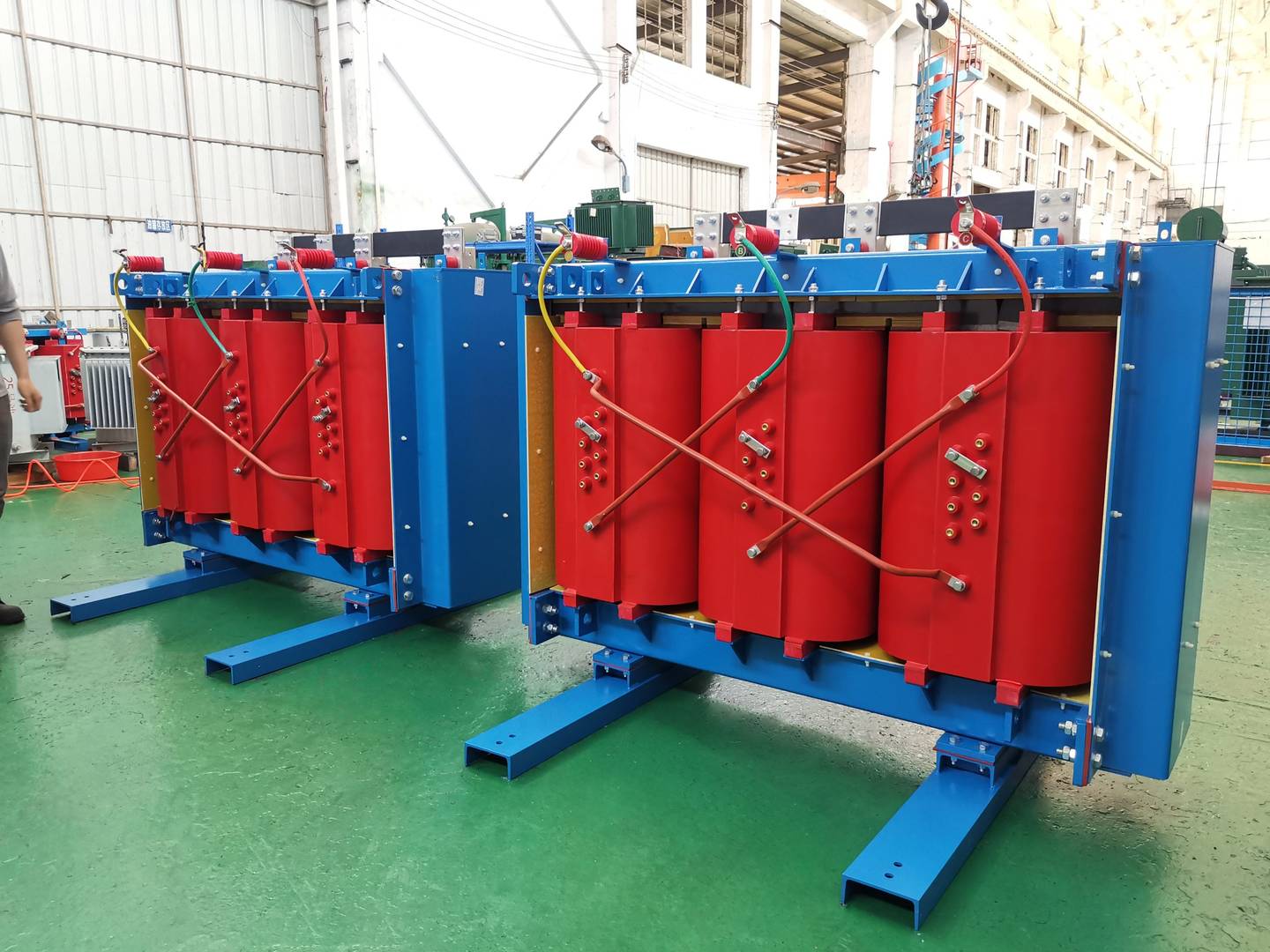

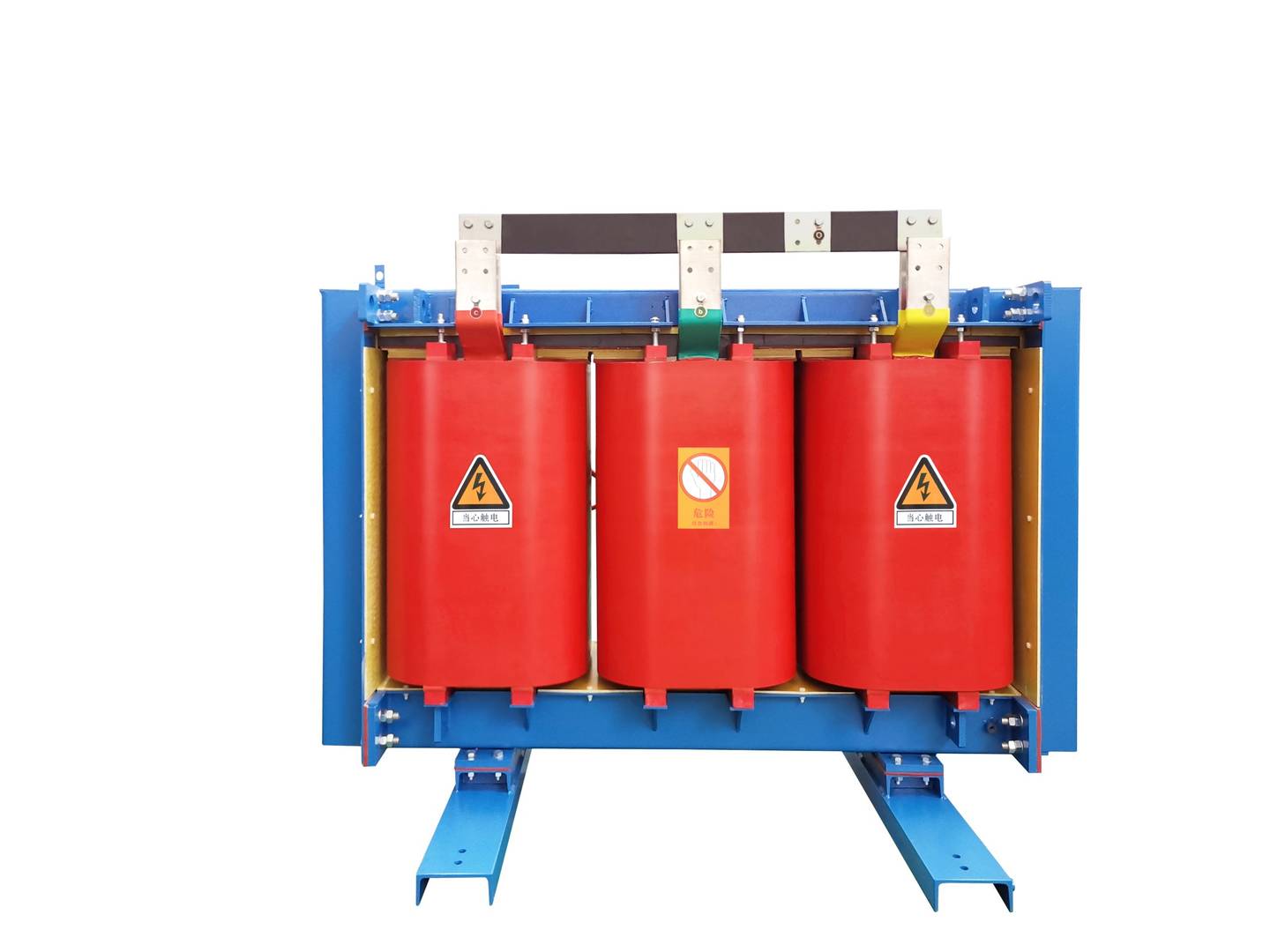

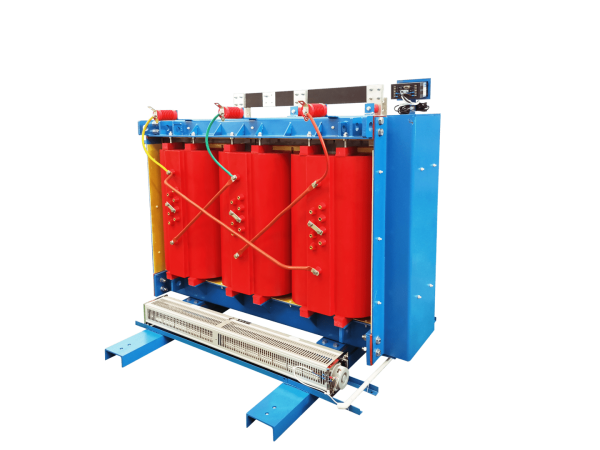

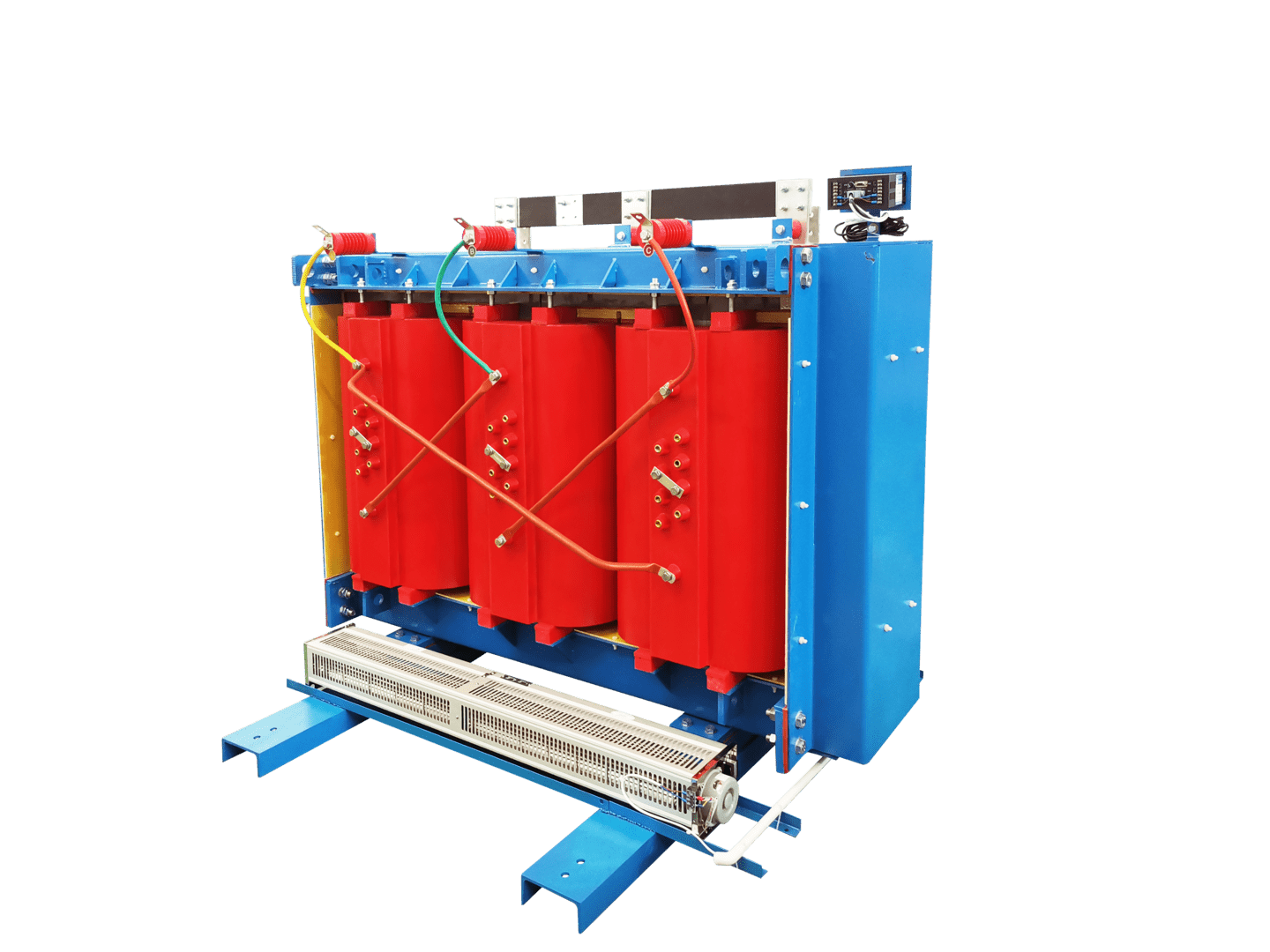

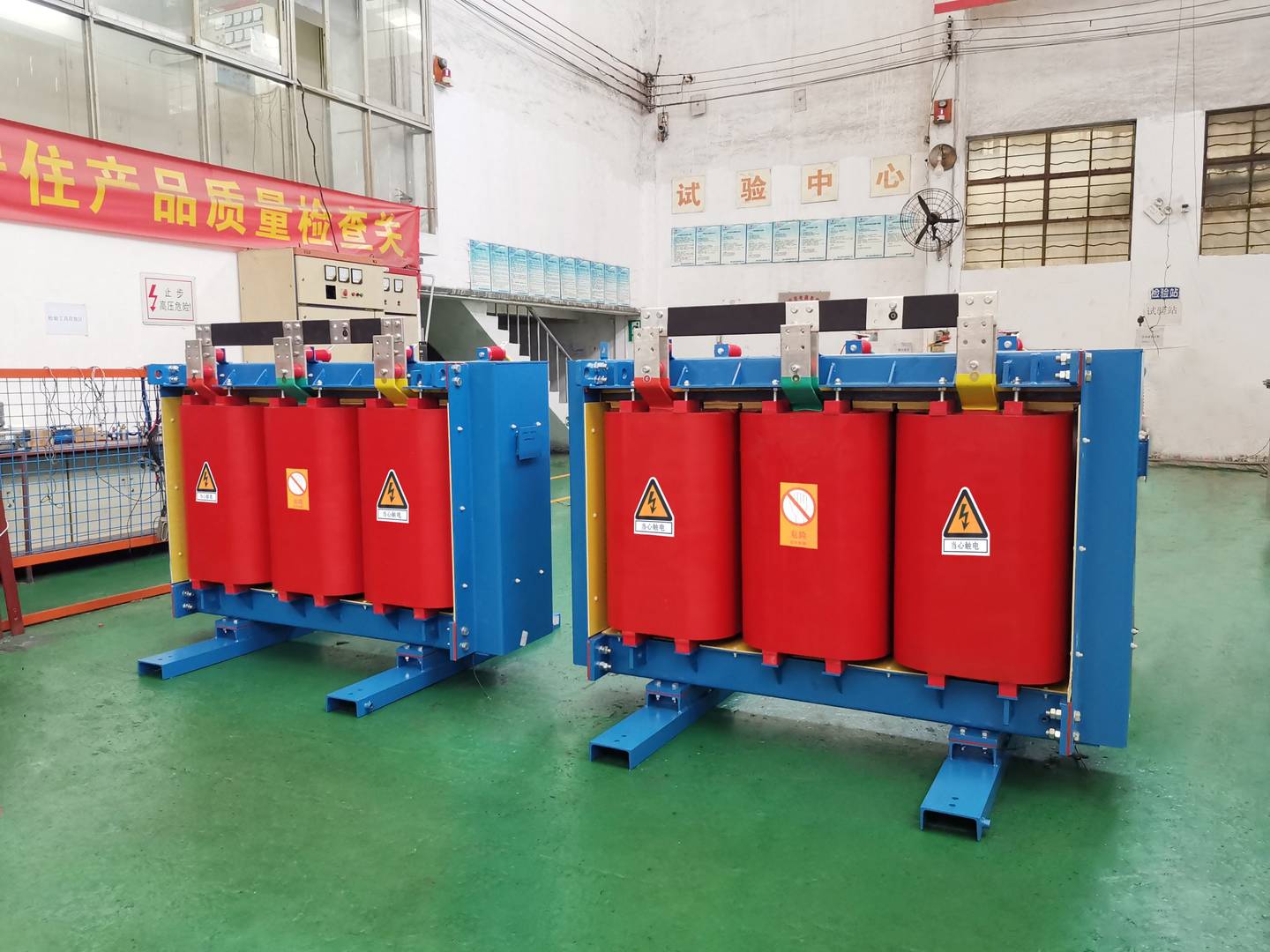

Amorphous Alloy Dry Type Transformer

Foshan Youlin’s amorphous alloy dry type transformer is an advanced type of the ordinary type dry type transformer with silicon steel core. It has all the advantages of the silicon-steel-core dry type transformer, besides, has much lower no load loss.

Product description

The iron core of dry type amorphous alloy transformer is made of permeability magnetic material – amorphous alloy. The no-load loss is 1/3 of the of silicon steel sheet of the ordinary dry type transformer , which can help you save 60-70% electricity consumption. Epoxy cast resin pouring process for coil strengthen the mechanism and anti short circuit ability.



SCBH15 Three Phase Amorphous Alloy Dry Type Transformer

Technical Specification

Rated PowerHigh VoltageTapping RangeLow VoltageVector GroupNo-load

loss

(W)

Load Loss

(120℃)

(W)

Impedance

     (%)



50kVA





6kV



6.3kV



10kV



10.5



11











±2×2.5%



±5%













0.4kV











Dyn11

 or

Yyn0

1301570







4.0

125kVA1501850
160kVA1702130
200kVA2002530
250kVA2302760
315kVA2803470
400kVA3103990
500kVA3604880
630kVA4105960





6.0



800kVA4806960
1000kVA5508130
1250kVA6509690
1600kVA76011730
2000kVA100014450
2500kVA120017170



Applications:

Amorphous alloy dry type transformer can be used for the places having high demand of fire proof, such as airports, railway stations, subways, shopping malls, high-rise residential and so on.



Product advantages:

  1. The iron core of the product is made of permeability magnetic material – amorphous alloy. It can help you save the energy up to 60-70%.
  2. It can be directly installed in the load center because of its fireproof function.
  3. Maintenance free, easy for installation and low operation cost.
  4. It can operate normally in a humid environment with its good moisture resistance.
  5. Low loss, low noise and strong heat dissipation ability.
  6. It is widely used, especially in places with high requirements for fire prevention.
  7. It can be configured the safe and good-lookingenclosure according to customer requirements.



OUR SERVICE:

  • Listen carefully and clearly to customer specific requirements for products.For some customers at the beginning, they are not clear what exactly they are looking for, we will recommend the items after we learn the necessary core parameters from the client and provide them detailed parameters, pictures and other product information to ensure that products fully meet the
  • Our products can be customized, and the MOQ is one unit. Please just let us know the details of the item you need.
  • We have professional QCteam to make 100% inspection before the delivery.
  • Within the period of guarantee, if there are quality problems caused by manufacturing, we will take responsibility.If the quality problem is caused by other reasons, our company will actively assist to deal with, provide necessary technical support, solve the problem for customers, with the fastest speed to minimize the loss caused by the accident.
  • Assist customers to install and debug major equipment and provide on-site technical services, send personnel to the site if necessary, until the equipment is put into operation safely.
  • Within the guaranteeperiod stipulated in the contract, if the product is damaged or faulty due to defects in design, manufacturing or materials, our company guarantees to provide timely solutions to customers upon receipt of notice.
  • Strictly fulfill the relevant terms of the contract, and constantly improve the quality of service.



HIGH QUALITY:

Passed ISO, CE, CCC, CQC, Type test report, certificates of patent,etc.



OUR ADVANTAGE:

  • We make the transformer of high quality raw materials, and the price is reasonable.
  • We have the best transformer designing, producing, selling and quality control team in a bid to offer you the best product and service.
  • We accept OEM/ODM order and can customize the accurate item the customer need.
  • We want to build up a long term business relationship with you, so we will try our best to make everything perfect for you.

All prototype products have to go through 4 checks in the whole process:
1. Raw material inspection
2. In processing inspection
3. Final inspection
4. Outgoing inspection



FAQ:

-Q1. Can I use my company’s logo?

A1. Sure, we can offer OEM/ODM service.

-Q2. What is the MOQ?

A2. MOQ=1 unit

-Q3. What is the delivery time?

A3. It depends on the order quantity. Usually it takes about 20 days to make the customized item with small quantity.

-Q4. What is the packing material?

A4. Plywood box.

-Q5. Do you have export experience?

A5. Sure. Our main markets are South Asia, Africa, Europe, American countries and etc. Welcome to be our agent in your country.

-Q6. How long is the guarantee?

A6. We offer 12 months(1 year) guarantee.
