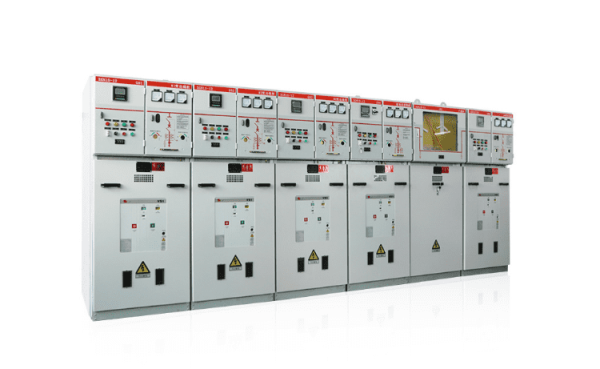

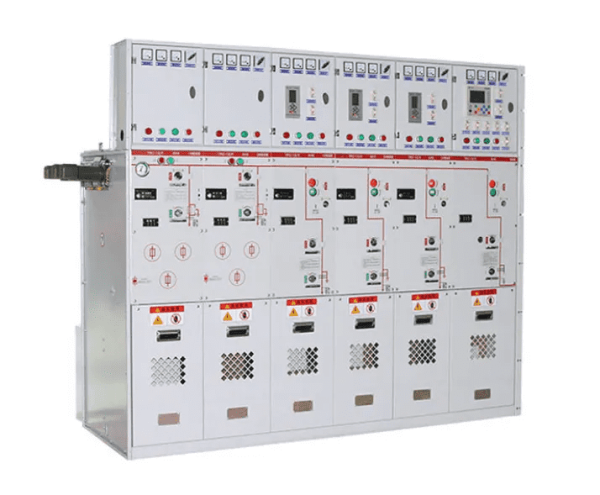

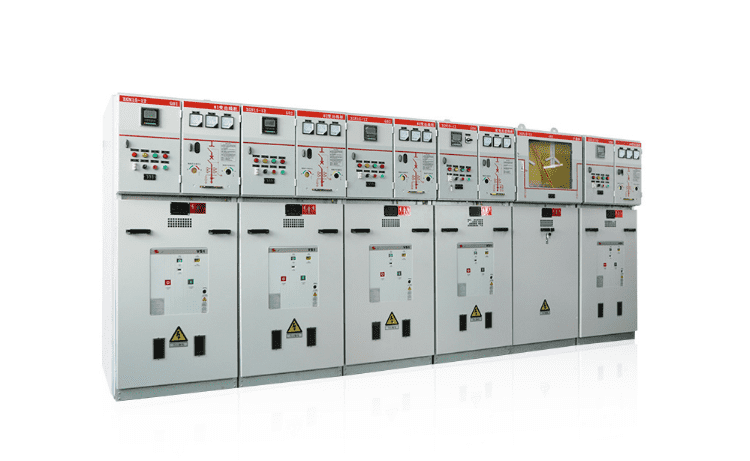

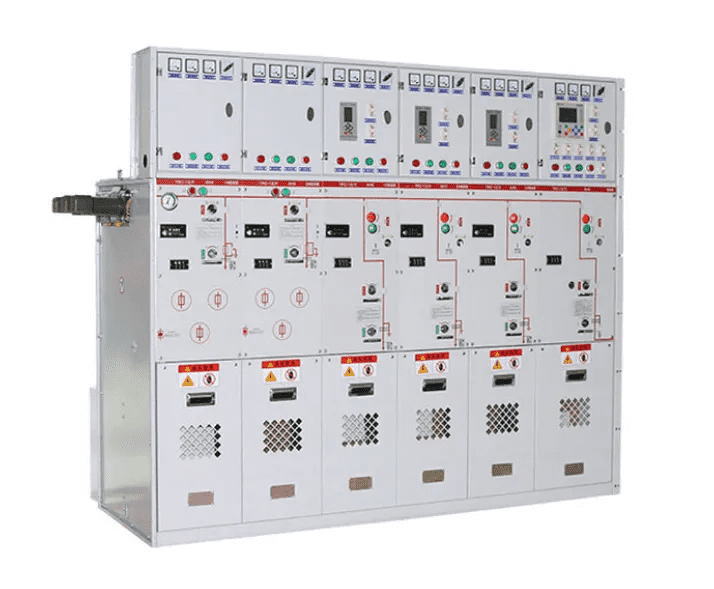

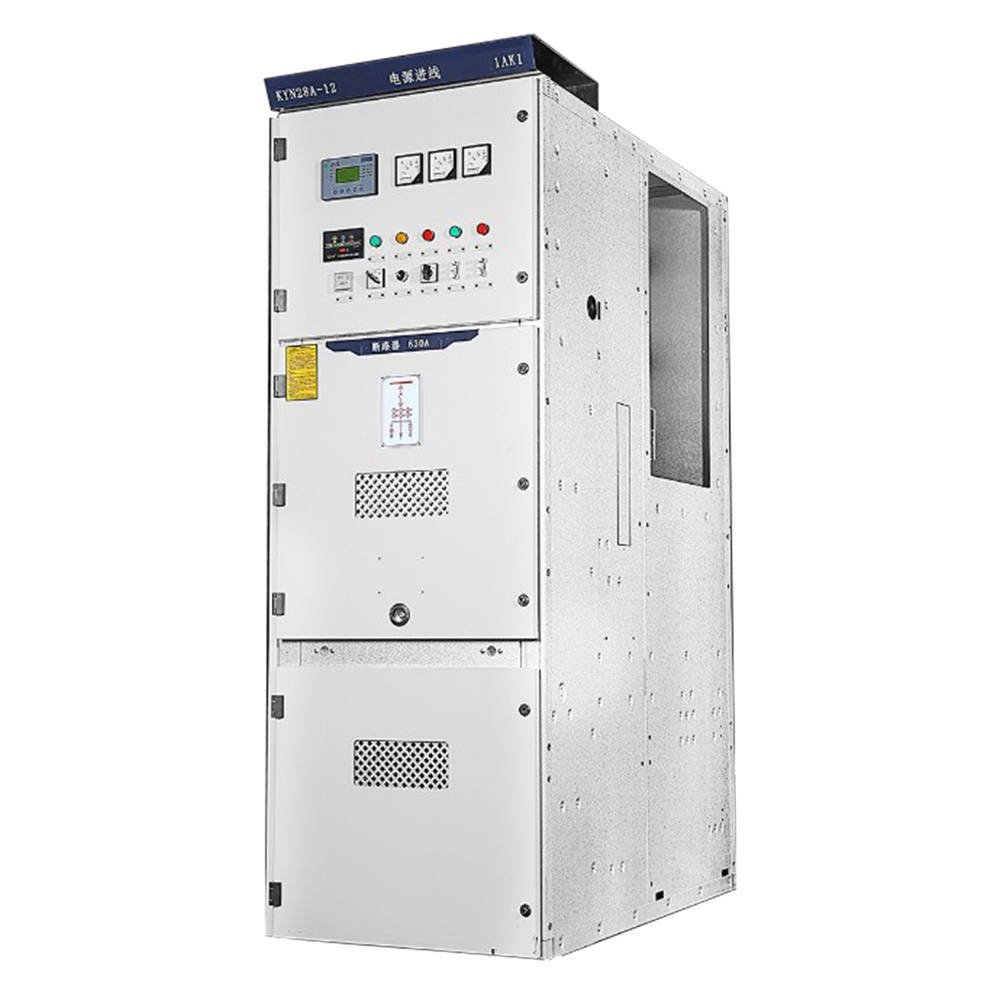

High Voltage Switchgear

Product Features:

– Can be equipped with ZN63(VSI), VD4 vacuum circuit breaker;
– Aluminum zinc coated plate enclosure, fully metal armored and thoroughly separated with good sealing;
– Protection level:IP4X which can prevent the equipment from debris and insect invasion;
– Simple and effective locking prevents misoperation;
– Easy to replace the circuit breaker;
– Cabinet body can be installed back to wall , repaired in front of the cabinet to reduce the floor area;
– The cable room has enough space for connecting multiple cables;
– Through the window of the cabinet door, the installation of the cable room can be clearly observed;
– The secondary wire is laid in a wide slot, easy to connect;
– Can be equipped with conventional relay protection or advanced, high reliability microcomputer monitoring control protection operating system.

Product description

High Voltage Switchgear

Technical Specifications:

ItemUnitSpecification
Rated voltagekV12kV, 24kV, 36kV, 40.5kV
Rated frequencyHz50/60Hz
Rated currentA630,1250,1600,2000,2500,3150,4000
Power frequency withstand voltagekV42,95
Lightning impulse withstand voltagekV75,95,170
Rated control volatgeVDC110,DC220,AC220
Short time withstand currentkA20/25/31.5/40
Protection levelIP4X
Standardas per IEC standard





OUR SERVICE:

  • Listen carefully and clearly to customer specific requirements for products.For some customers at the beginning, they are not clear what exactly they are looking for, we will recommend the items after we learn the necessary core parameters from the client and provide them detailed parameters, pictures and other product information to ensure that products fully meet the
  • Our products can be customized, and the MOQ is one unit. Please just let us know the details of the item you need.
  • We have professional QCteam to make 100% inspection before the delivery.
  • Within the period of guarantee, if there are quality problems caused by manufacturing, we will take responsibility.If the quality problem is caused by other reasons, our company will actively assist to deal with, provide necessary technical support, solve the problem for customers, with the fastest speed to minimize the loss caused by the accident.
  • Assist customers to install and debug major equipment and provide on-site technical services, send personnel to the site if necessary, until the equipment is put into operation safely.
  • Within the guaranteeperiod stipulated in the contract, if the product is damaged or faulty due to defects in design, manufacturing or materials, our company guarantees to provide timely solutions to customers upon receipt of notice.
  • Strictly fulfill the relevant terms of the contract, and constantly improve the quality of service.



HIGH QUALITY:

Passed ISO, CE, CCC, CQC, Type test report, certificates of patent,etc.



OUR ADVANTAGE:

  • We make the transformer of high quality raw materials, and the price is reasonable.
  • We have the best transformer designing, producing, selling and quality control team in a bid to offer you the best product and service.
  • We accept OEM/ODM order and can customize the accurate item the customer need.
  • We want to build up a long term business relationship with you, so we will try our best to make everything perfect for you.



All prototype products have to go through 4 checks in the whole process:
1. Raw material inspection
2. In processing inspection
3. Final inspection
4. Outgoing inspection



FAQ:

-Q1. Can I use my company’s logo?

A1. Sure, we can offer OEM/ODM service.

-Q2. What is the MOQ?

A2. MOQ=1 unit

-Q3. What is the delivery time?

A3. It depends on the order quantity. Usually it takes about 20 days to make the customized item with small quantity.

-Q4. What is the packing material?

A4. Plywood box.

-Q5. Do you have export experience?

A5. Sure. Our main markets are South Asia, Africa, Europe, American countries and etc. Welcome to be our agent in your country.

-Q6. How long is the guarantee?

A6. We offer 12 months(1 year) guarantee.
